DESCRIPTION:

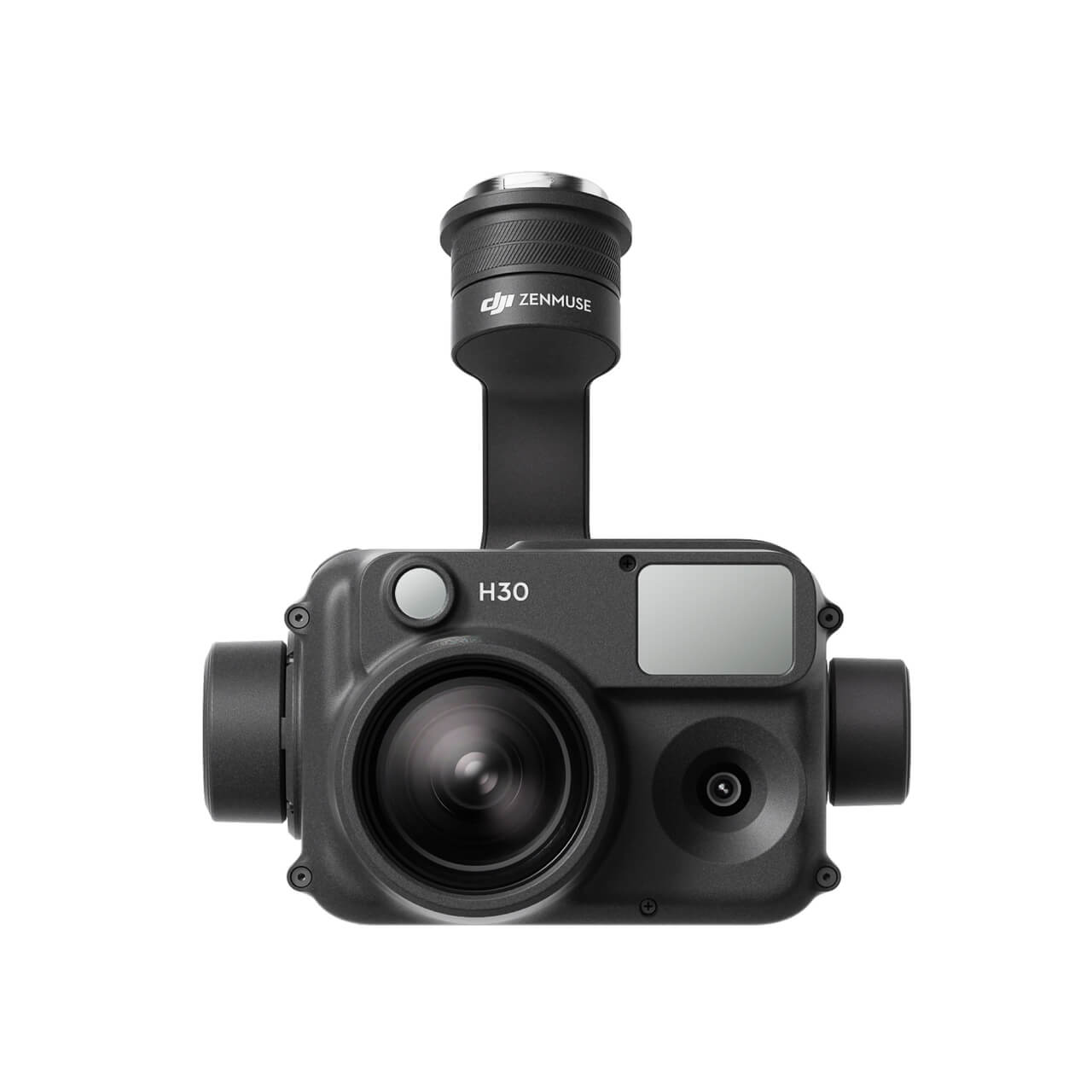

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.
Versatile Performance,
Day and Night
 |
Zoom Camera-up to 34x Optical Zoom and 400x Digital Zoom -40MP 1/1.8-inch COMS Sensor -Video Resolution: Max 3840x2160@30fps |
 |
Wide-Angle Camera-Equivalent Focal length: 24mm, DFOV: 82.1° -48MP 1/1.3-inch CMOS Sensor -Video Resolution: Max 3840x2160@30fps |
|
|
Laser Range Finder-Measurement Range: 3-300m -Measurement Accuracy: ≤500m: ±(0.2m+measurement distance x 0.15%)＞500m: ±1.0m |
 |
Infrared Thermal Camera (H30T only)-Equivalent Focal Length: 52mm, DFOV: 45.2° -UNcooled VOx Microbolometer -Photo Resolution: 1280x1024 -Video Resolution: 1280x1024@30fps -Temperature Measurement Range from -20° to1600℃（-4° to 2912℉） |
 |
Zoom Camera-Up to 34x Optical Zoom and 400x Digital Zoom -40MP 1/1.8-inch CMOS Sensor -Video Resolution: Max 3840x2160@30fps |
Up to 34× Optical Zoom
|
 |
 |
More Stable Imagery
|
Max 3000m Laser Range FinderThe laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, [3] accurately capturing the position information of subjects within a range from 3 m to 3000 m, [4] including linear distance from the camera, altitude, and GPS coordinates. |
|
