Zenmuse S1

DJI's First Spotlight for Multi-Payload Drone Platforms

ZENMUSE S1

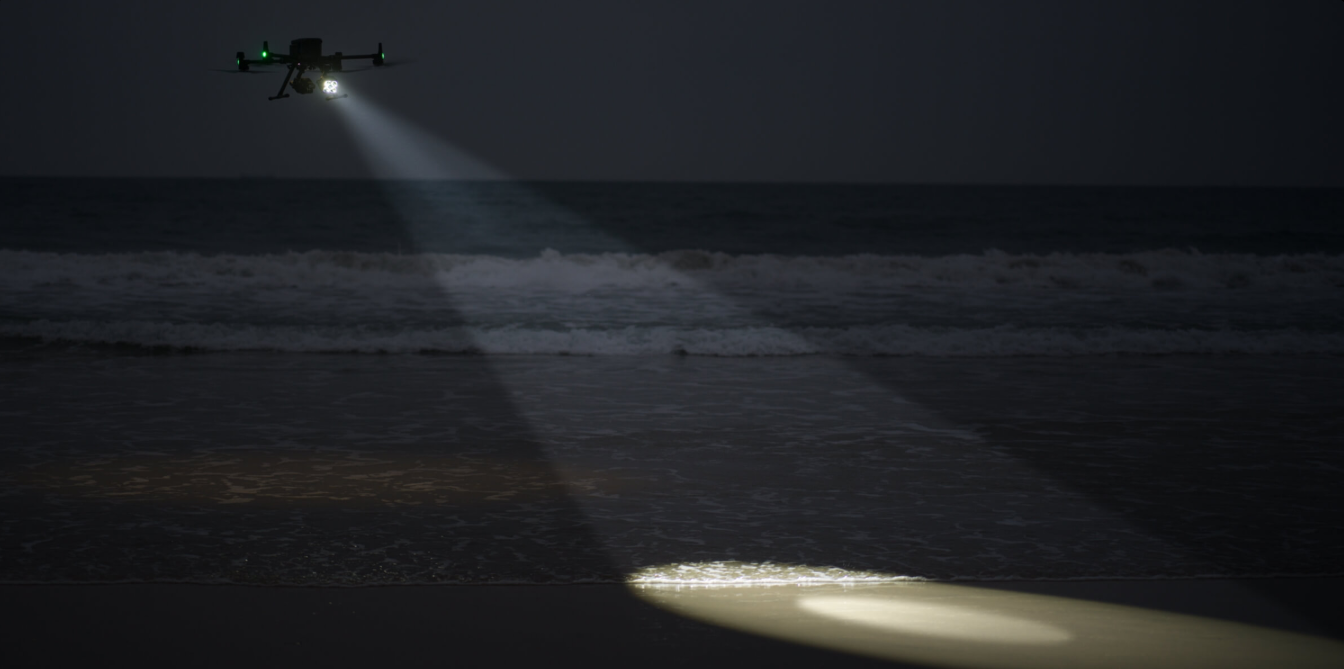

Light Up The Night

Zenmuse S1 is DJI's first spotlight designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.

Multiple Lighting Modes

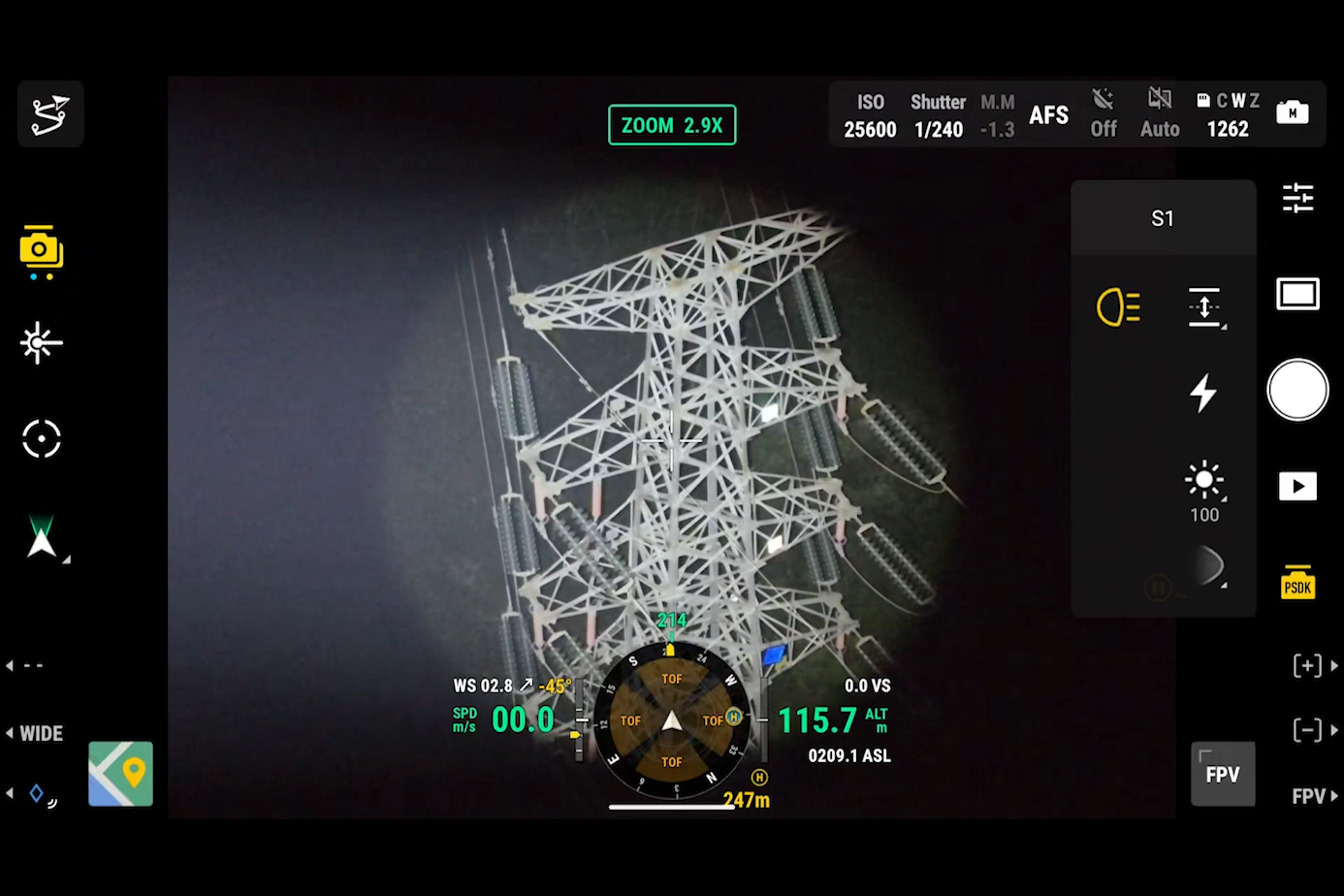

Low Beam Mode Provides a 15° field of view (FOV) within a distance of 150 meters, covering the illumination range of a camera at 5x zoom or above.  This mode is suitable for most short-distance search and inspection needs.

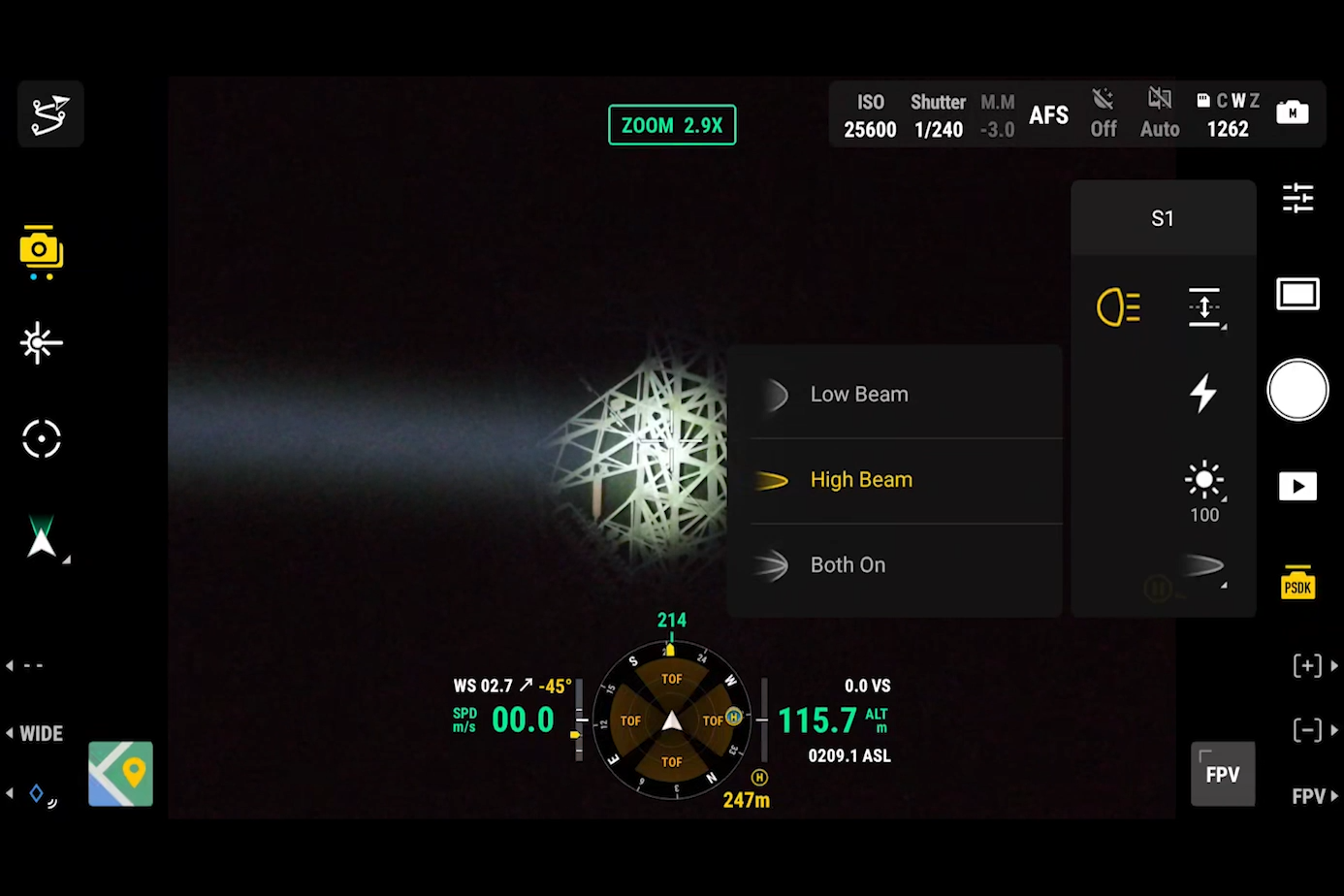

	High Beam Mode Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4° field of view (FOV) at a distance of 300 meters.  It covers the illumination range of a camera at 15x zoom or above, enhancing efficiency in emergency rescue and public safety operations.

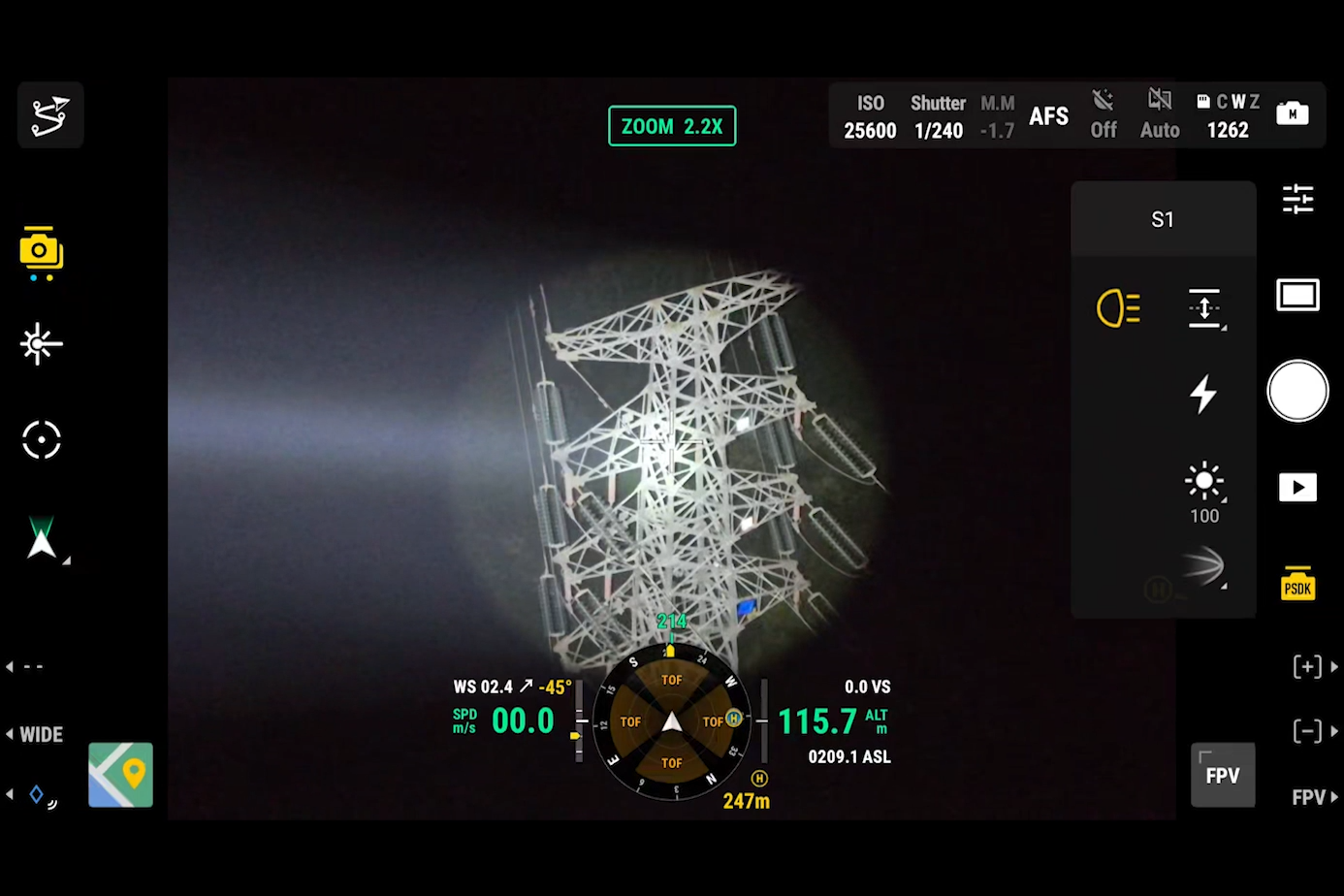

Both On Mode Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. This mode offers maximum illumination coverage for comprehensive situational awareness.
	Strobe Mode Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios.

Brightness Meets Energy Efficiency

Zenmuse S1 delivers a maximum central illuminance of 35 lux at 100 meters, providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 17 W, reducing the power load on the drone and helping to maintain the flight time.

Reliable and Intuitive

Payload Protection Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.	Burn Protection Zenmuse S1 features a plastic casing with a contact surface temperature that does not exceed 50° C (122° F), effectively preventing burn risks.

Eye Protection When the drone is not in flight, Zenmuse S1 automatically dims the light to 40% of its maximum brightness to prevent glare and protect the operator's vision.	Efficient Remote Controller Shortcuts Zenmuse V1 supports customizable shortcuts of the remote controller, allowing buttons to be set for brightness adjustment, turning the light on/off, or lighting mode changes. This makes operation convenient and intuitive, significantly enhancing the user experience.	Strong Environmental Adaptability With an IP54 rating for dust and water resistance, Zenmuse S1 can operate in ambient temperatures ranging from -20° to 40° C (-4° to 104° F), making it adaptable to various operating environments.
