DJI Drone DOCK 2

DJI Drone DOCK 2

Easy Operation, Superior Results

DESCRIPTION:

The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to automatic operations.

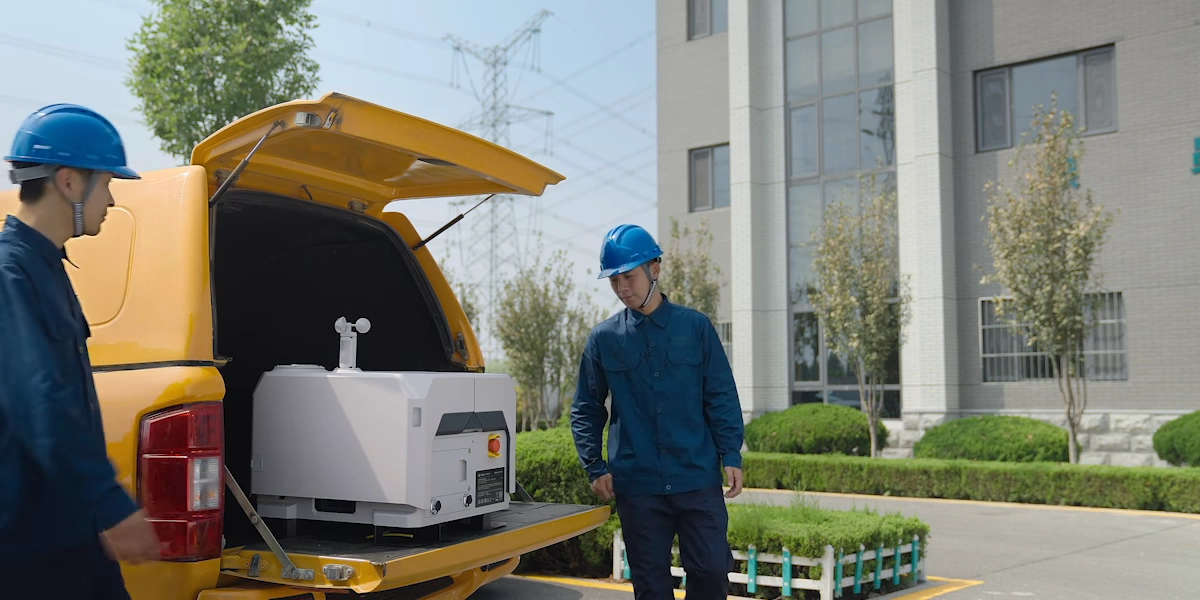

Lightweight Design

DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.

Efficient Site Evaluation

Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. ^[4] This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less.

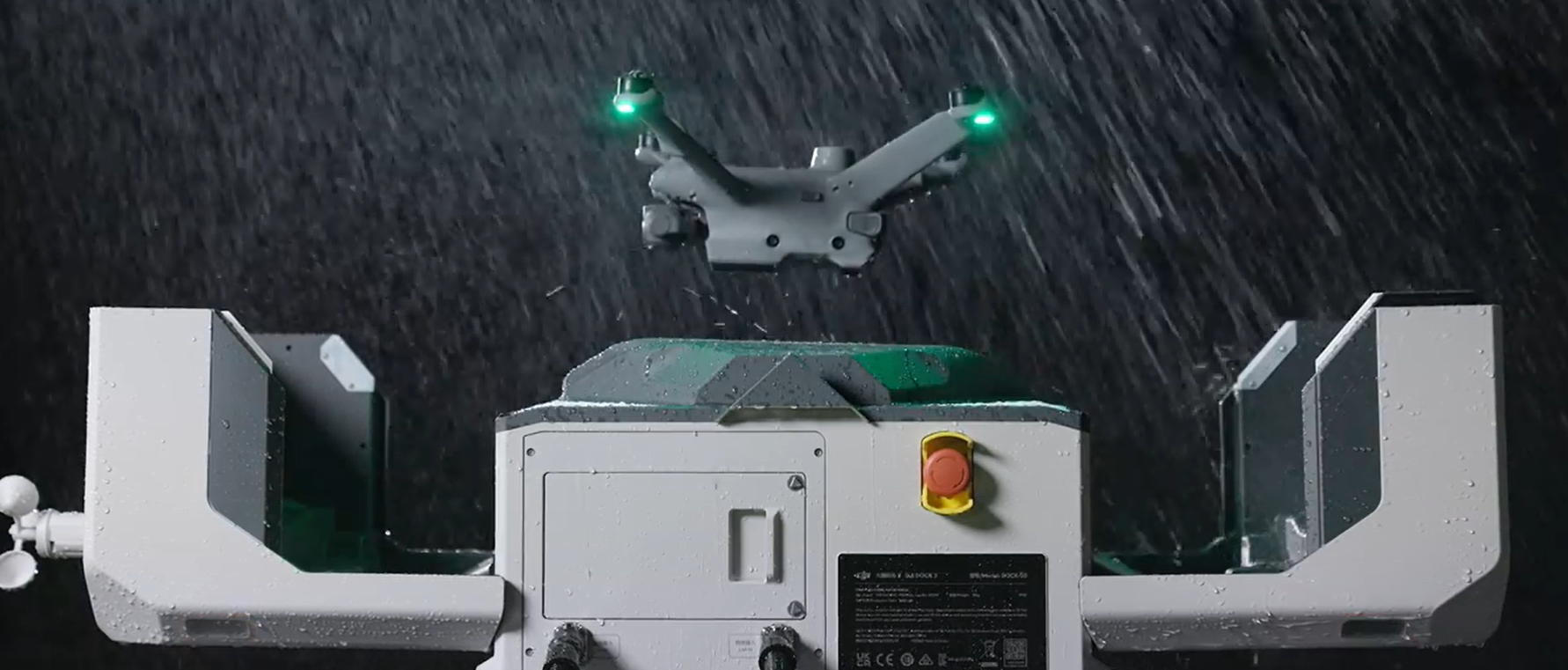

Rugged, Reliable, Recharged

DJI Dock 2 is designed with safeguarding in mind. With an IP55 dust and water resistance rating, Dock 2 can operate steadily for extended periods even in harsh climates and environments.

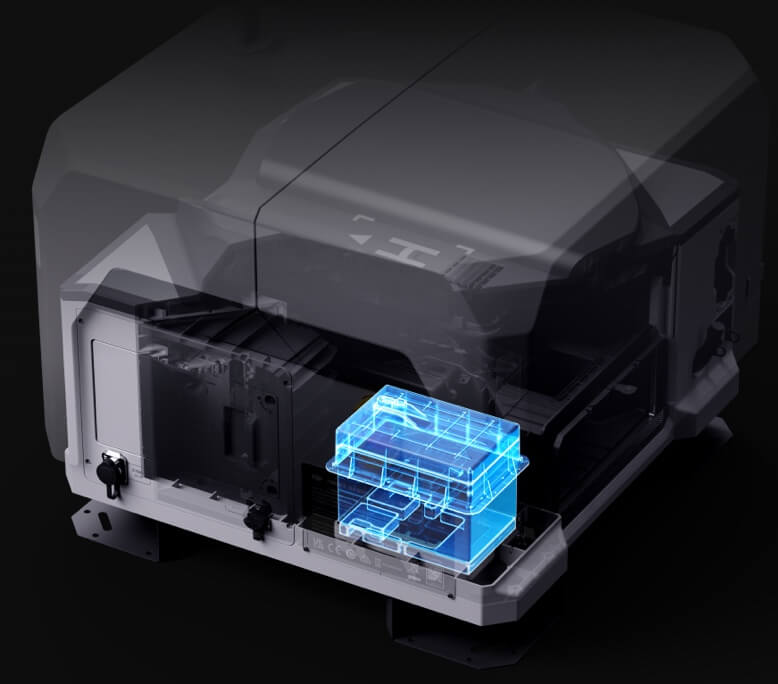

Built-In Backup Battery In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours  with the built-in backup battery, leaving sufficient time for the aircraft to return and land.	Six-Month Maintenance Interval With its high level of protection and reliability, DJI Dock 2 only requires maintenance approximately every six months,  effectively controlling human resource costs.	Abnormal Condition Notifications If DJI Dock 2 and the aircraft encounter task failures or emergencies, DJI FlightHub 2 will immediately send email notifications. This allows operators to accurately trace and troubleshoot problems based on the provided information.

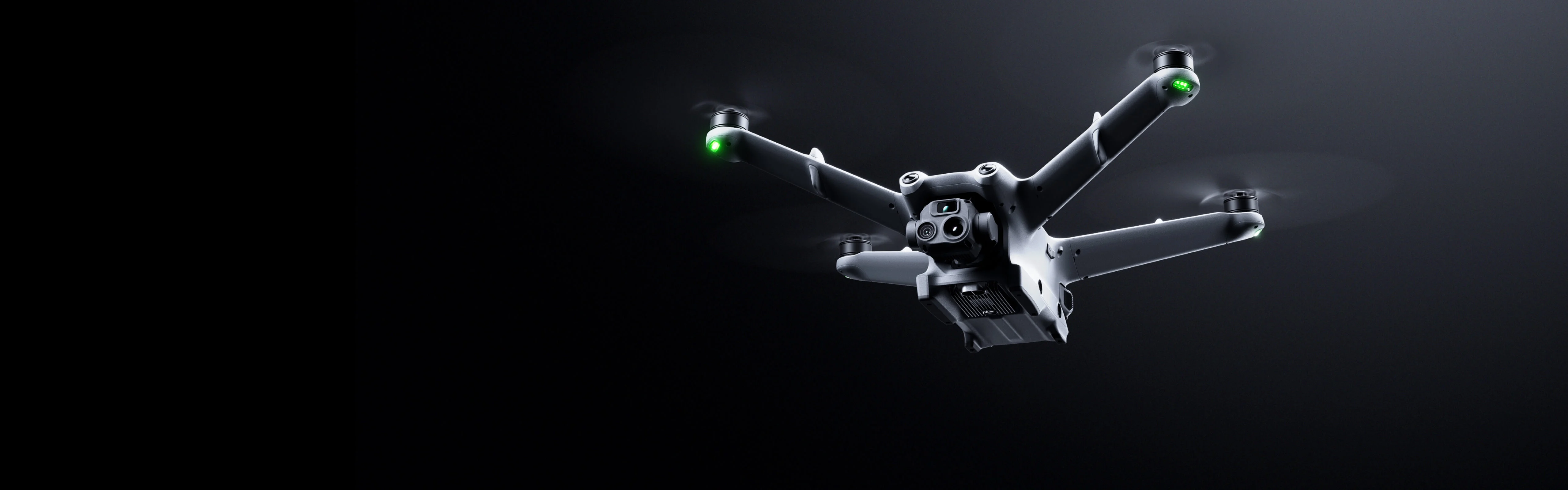

High-Performance Aircraft Models

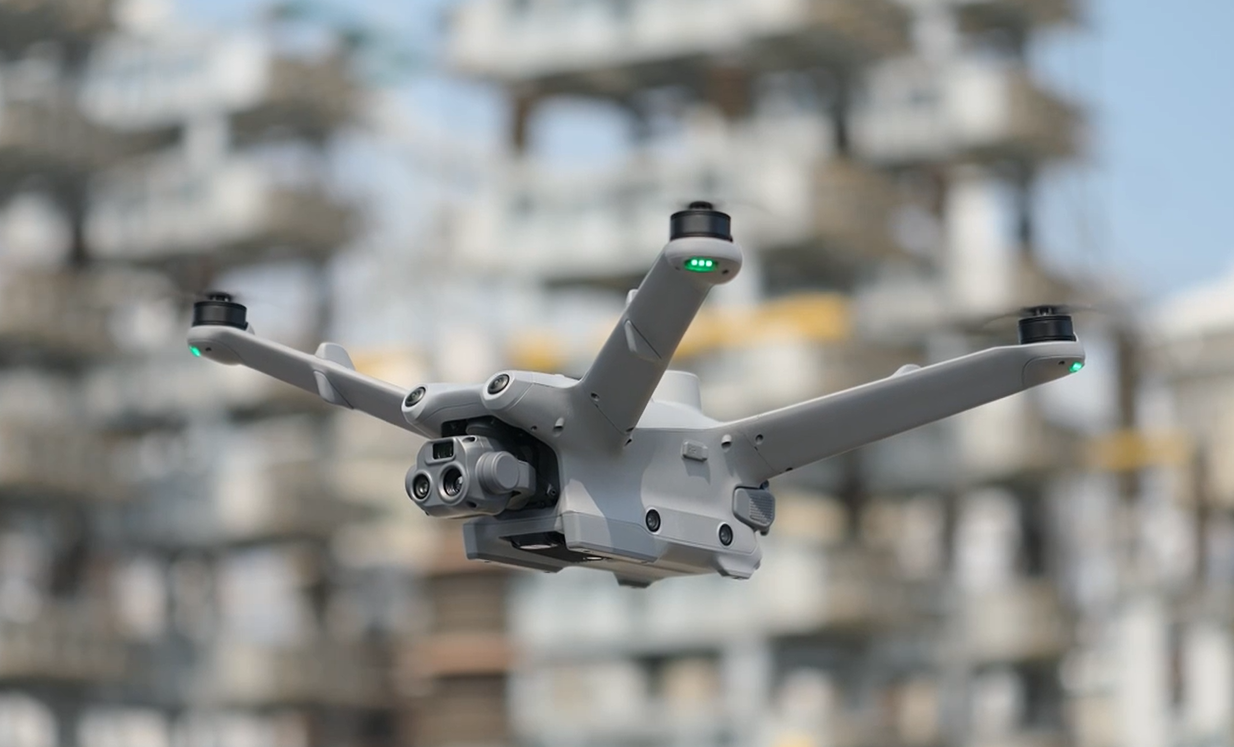

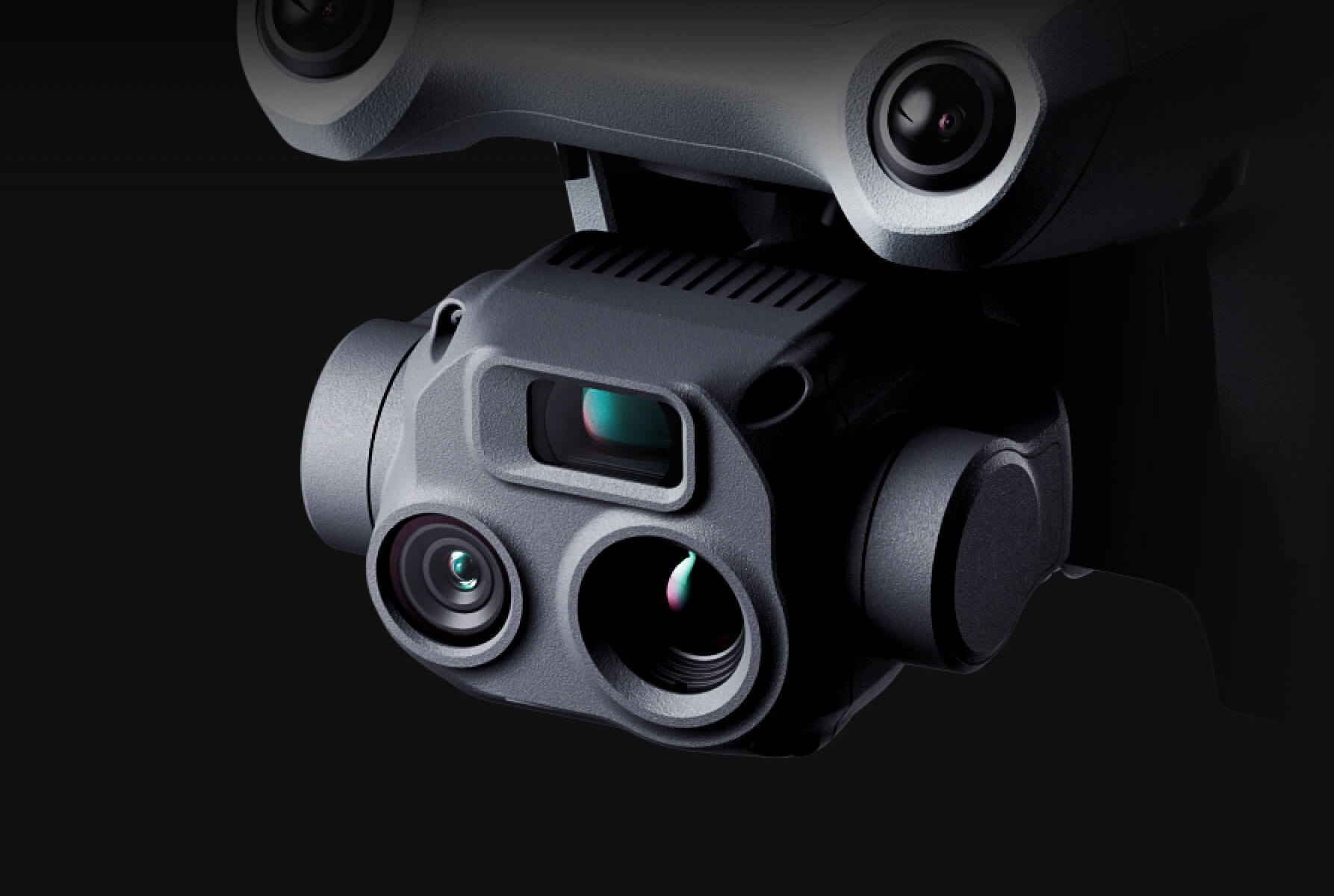

The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.

DJI MATRICE 3D	DJI MATRICE 3TD

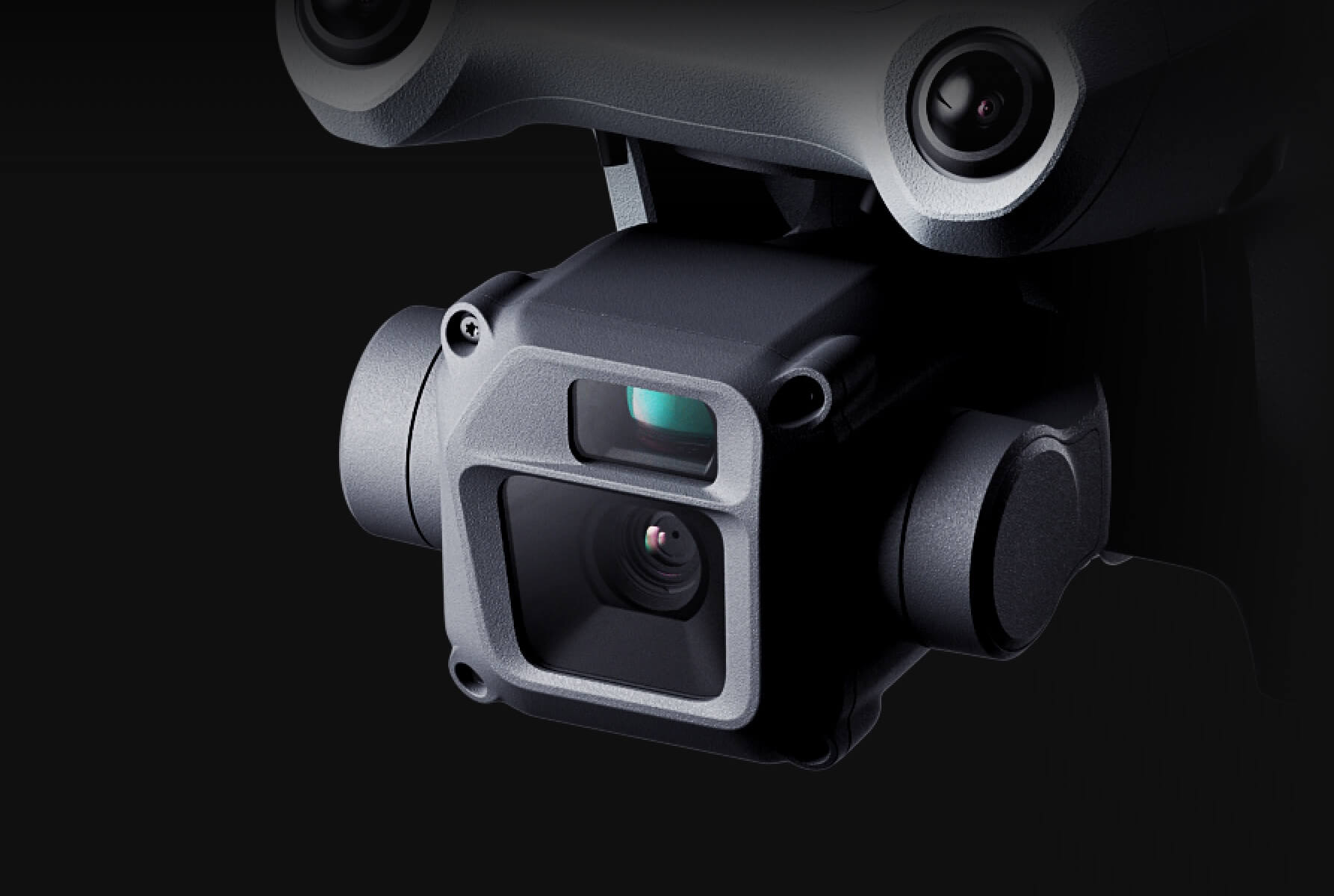

Wide-Angle Camera 4/3 CMOS 24mm Format Equivalent 20MP Effective Pixels Mechanical Shutter	Wide-Angle Camera 1/1.32-inch CMOS 24mm Format Equivalent 48MP Effective Pixels
Tele Camera 1/2-inch CMOS ‌162mm Format Equivalent 12MP Effective Pixels	Tele Camera 1/2-inch CMOS ‌162mm Format Equivalent 12MP Effective Pixels
	Infrared Camera 40mm Format Equivalent Normal Mode: 640×512@30fps UHR Infrared Image Mode: 1280×1024@30fps (With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.) 28x Digital Zoom
